Efficient cooling: Cooling pads use special humidity control technology to reduce the temperature of the surrounding air through the principle of water evaporation, effectively lowering the indoor or outdoor temperature.

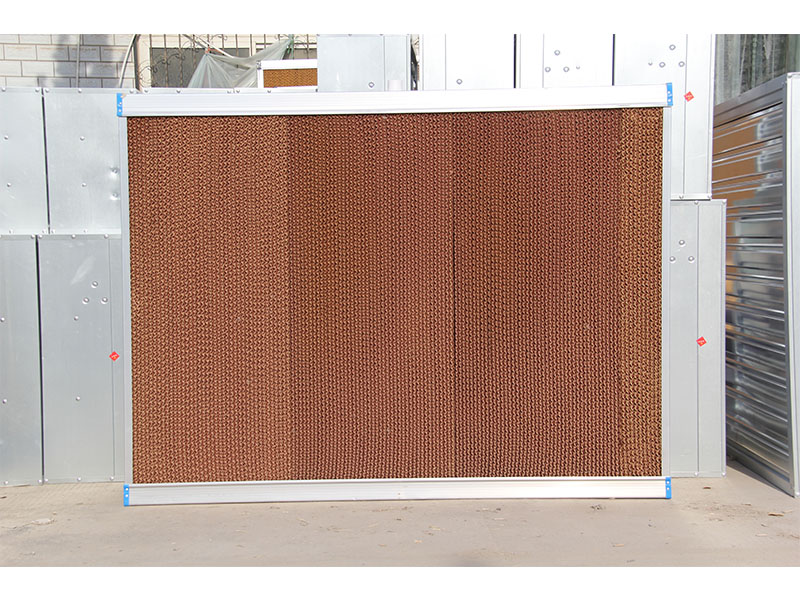

Product Introduction

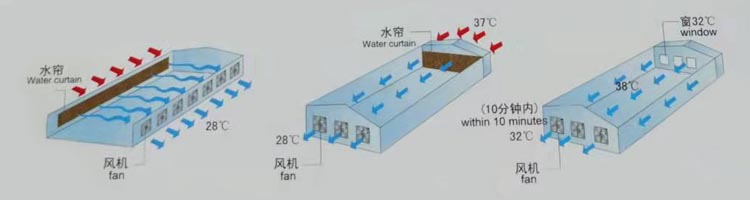

The Cooling Pad operates on the principle of "water evaporation and heat absorption", where water flows from top to bottom due to gravity, forming a water film on the corrugated fiber surface of the pad. As fast-moving air passes through the pad, it comes into contact with the water film which absorbs its heat and evaporates, resulting in a reduction in temperature and achieving effective cooling.
Product Specifications
Water Curtain Parameters | |||||
Model | Height(mm) | Width(mm) | Thickness(mm) | Flute | Angle |
7090 | 1500/1800/2000/Customized | 300/600/Customized | 100/150/200/Customized | 7mm | 45°/45° |
7060 | 1500/1800/2000/Customized | 300/600/Customized | 100/150/200/Customized | 7mm | 45°/45° |
5090 | Customized | Customized | Customized | 5mm | 45°/45° |
Water Pump Parameters | ||
Type | Parameter | Pad Length |
0.37 kw Pump | 380 V/50 HZ/3 phase | ＜6 m |
0.55 kw Pump | 380 V/50 HZ/3 phase | 6-10 m |
0.75 kw Pump | 380 V/50 HZ/3 phase | 10-15 m |
0.9 kw Pump | 380 V/50 HZ/3 phase | 15-24 m |
Product Images
Products Advantages:
--> Made of absorbent kraft paper.
--> High water absorption, corrosion-resistant, anti-mildew, use life together long. --> Evaporative cooling efficiency up to 85%.
--> Natural water absorption, diffusion speed, performance, and lasting.
--> Not contain any harmful substances such as phenol, green, economical, and easy to install.
Delivery Details:
Samples delivery time: 1 ~ 2 days
Normal products: Available stock
LCL orders delivery time: 7~15 days
FCL orders delivery time: 15~20 days
If you are interested in our products or have any questions, just leave your message, we will give you the fastest and most professional answer!
