Product Specifications
The evaporative cooling pad absorbs the heat in the air through the evaporation of water to achieve the cooling effect, reducing energy consumption and pollution of the environment.
Environmental protection and energy saving: the cooling wet curtain does not require the use of refrigerants or power-consuming equipment, and only requires a water source and a circulating fan to operate.

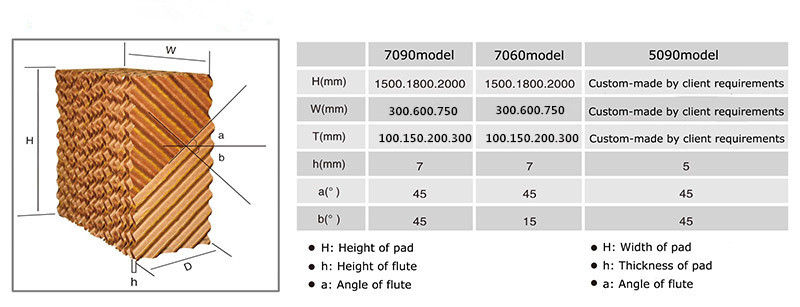

Water Curtain Parameters |
Model | Height(mm) | Width(mm) | Thickness(mm) | Flute | Angle |
7090 | 1500/1800/2000/Customized | 300/600/Customized | 100/150/200/Customized | 7mm | 45°/45° |
7060 | 1500/1800/2000/Customized | 300/600/Customized | 100/150/200/Customized | 7mm | 45°/45° |
5090 | Customized | Customized | Customized | 5mm | 45°/45° |
Water Pump Parameters |
Type | Parameter | Pad Length |
0.37 kw Pump | 380 V/50 HZ/3 phase | ＜6 m |
0.55 kw Pump | 380 V/50 HZ/3 phase | 6-10 m |
0.75 kw Pump | 380 V/50 HZ/3 phase | 10-15 m |
0.9 kw Pump | 380 V/50 HZ/3 phase | 15-24 m |
Schematic diagram of wet curtain ventilation and cooling
Horizontal Installation Longitudinal Installation Negative pressure ventilation system

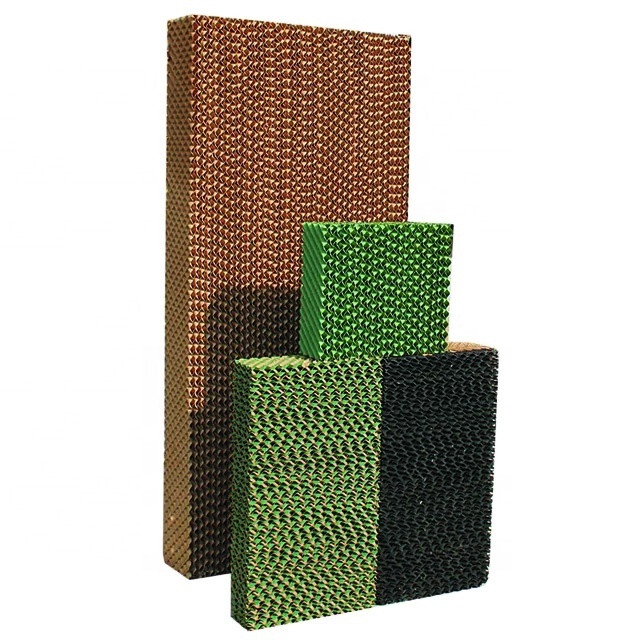

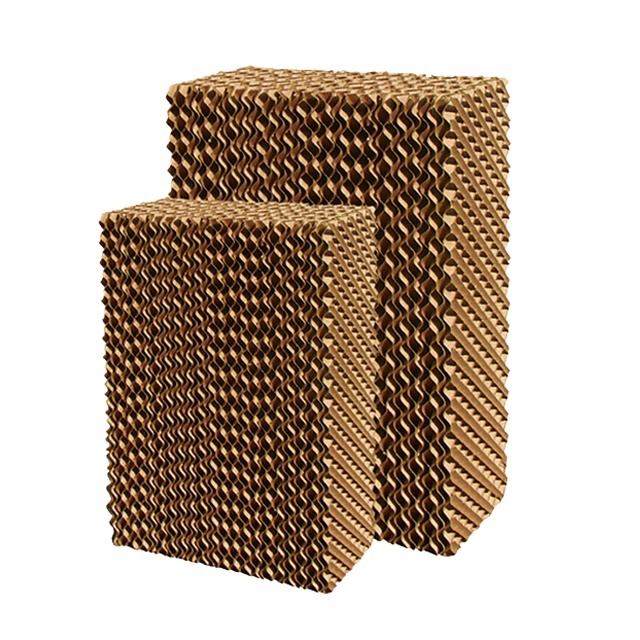

Product Images
Products Advantages:
Energy saving
Jiayou negative pressure ventilation cooling system is the use of fans and water curtains with the artificial reproduction of natural water evaporation cooling this physical process, power consumption is only one-tenth of the traditional air conditioning.
Ventilation
Under the mutual cooperation of the whole system, the extractor fan rapidly exhausts the heat, exhaust gas and odour produced by indoor personnel and machines, avoiding the stimulation of exhaust gas and odour to the human body. The whole indoor air can be renewed once in a minute, which is the effect that general air conditioners cannot achieve.
Improve work efficiency
Solve the problem of stifling heat and lack of oxygen content leading to a decline in workers' concentration. The use of water curtain products cooling can not only solve the problem of hot and stuffy plant but also in the water evaporation cooling at the same time produced a negative ion oxygen, increase the oxygen content in the air to regulate the mood to achieve the purpose of improving work efficiency.
health and environmental protection
The system uses water as a refrigerant, manufacturing and use of the process of the environment, the water curtain in addition to reducing air humidity, but also has the purification of dust and particles carried by foreign air. Circulation of fresh air, can prevent the rate of occupational diseases and circulation of disease transmission.
Strong applicability
Water curtain factory air-conditioning system is widely applicable, a variety of crowded, heat source, or easy to produce pollution, poor ventilation places, can play a significant role. Such as textile workshop, clothing workshop, injection moulding workshop, hardware factory, shoe factory, electronic factory, etc., according to its different environment to design the corresponding system, but also with the specific conditions of the room to adjust the different wind speed, air volume, very flexible.
Delivery Details:
Samples delivery time: 1 ~ 2 days
Normal products: Available stock
LCL orders delivery time: 7~15 days
FCL orders delivery time: 15~20 days
