Poultry And Livestock Feed Production Lines
Could design and custom along your poultry house width and layout
Include the cleaning scraper / the drive motor / the corner / the rope
One motor could drive 2-3 scraper to work at same time.
- Duohui
- Qingzhou City，China
- 7 Days
- 10000 Meters Per Month
Details
Product Specifications
3 TYPES OF FEEDING SYSTEMS COMPARED
NOTE: Customers to choose based on the actual situation
Product Advantages

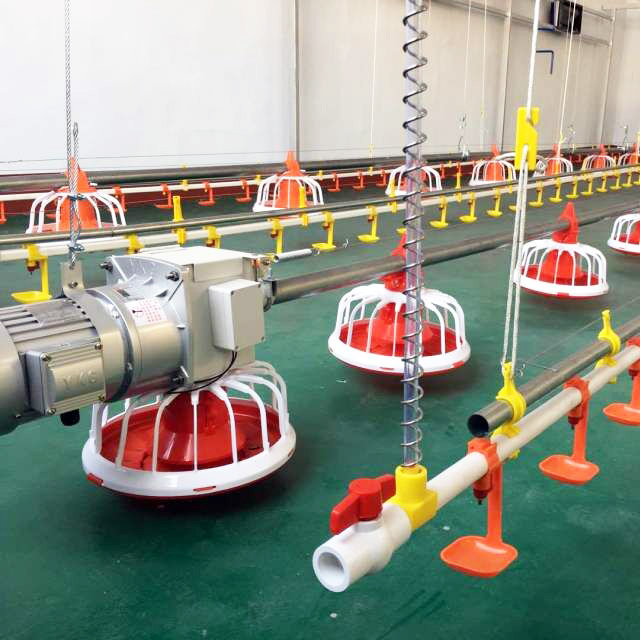

-->Rills feed pan with special design, can save the feed.
-->No need to open the feed pan. Feed downfalls to the side of the shallow plate, to make sure that even the birds stand outside of the pans, they can also eat feed conveniently.
-->Colorful, birds can easily see the feed pan and eat the feed.
-->PP material, firm and durable, corrosion resistance, long service life.
-->Convenient to dismantle and easy to clean.

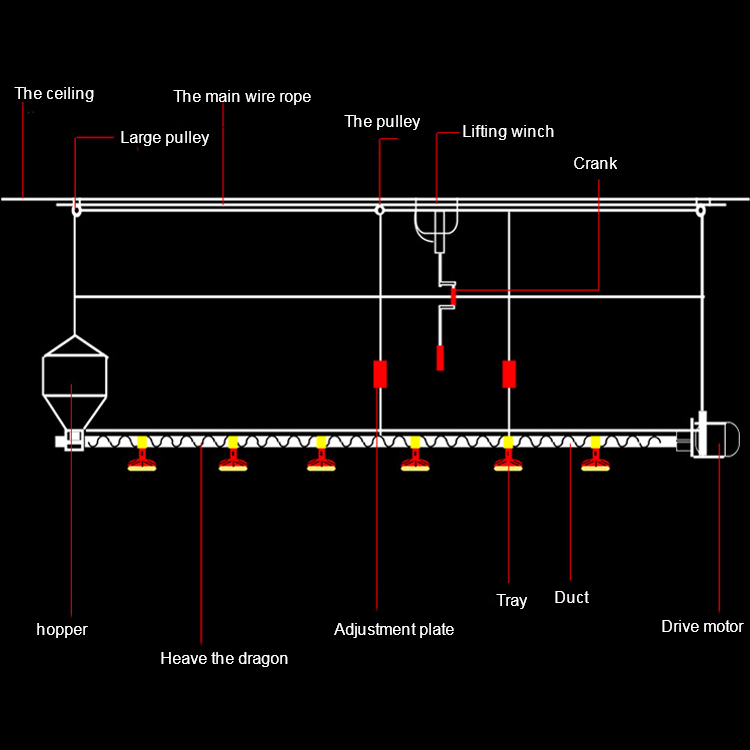

Motor
Slowdown motor driver 750W, 380V, transmission speed 450 kg/h
Hopper
Bin volume 120L, material: hot-dip galvanized sheet, material thickness 1.5mm
Feed pipe
Hot galvanized steel with the zinc thickness of 275 g/sq.m
Auger
Import from South Africa, high quality and durable.
Hanging system
Composed of winch, pulley, fixed parts, steel wire rope and wire clamp, etc. Feed pipe: Hot galvanized steel with the zinc thickness of 275 g/sq.m
Feeder sensor
Installed in the feed pan, control the drive motor starting or stop.
