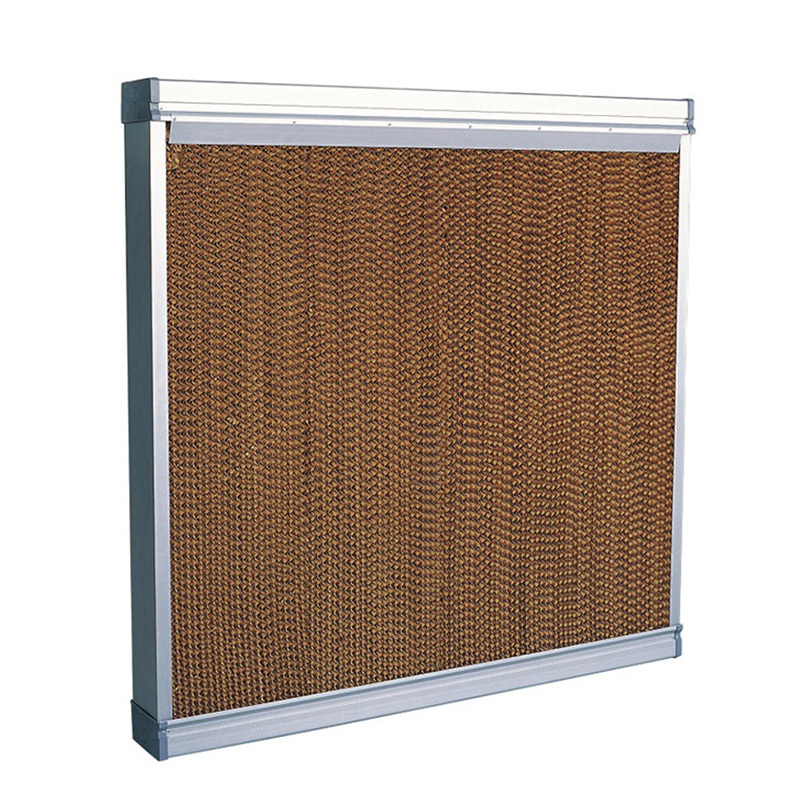

Poultry Greenhouse Cooling System Evaporative Cooling Pad
The Cooling Pad is based on the natural physical phenomenon of “water evaporates and absorbs heat”, that is, water flows from top to bottom under the action of gravity, forming a water film on the corrugated fiber surface of the cooling pad.
- Duohui
- Qingzhou City，China
- 7 Days
- 3000 CBM per Month
Details

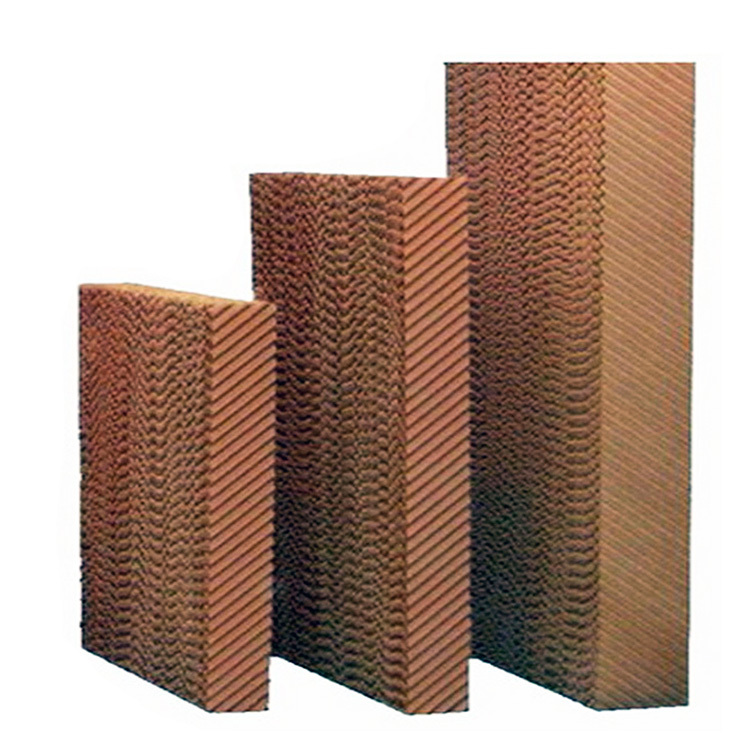

Evaporative cooling pad kraft paper honeycomb pads
The Cooling Pad is based on the natural physical phenomenon of “water evaporates and absorbs heat”, that is, water flows from top to bottom under the action of gravity, forming a water film on the corrugated fiber surface of the cooling pad. When the fast-moving air passes through the cooling pad, the water in the water film absorbs the heat in the air and evaporates, so that the temperature of the air passing through the cooling pad is reduced, thereby achieving a cooling effect.

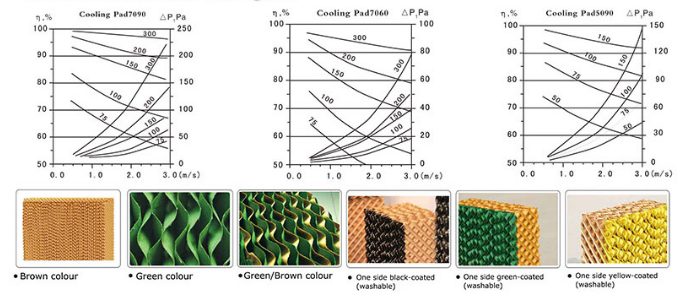

Product Specifications
Water Curtain Parameters | |||||
Model | Height(mm) | Width(mm) | Thickness(mm) | Flute | Angle |
7090 | 1500/1800/2000/Customized | 300/600/Customized | 100/150/200/Customized | 7mm | 45°/45° |
7060 | 1500/1800/2000/Customized | 300/600/Customized | 100/150/200/Customized | 7mm | 45°/45° |
5090 | Customized | Customized | Customized | 5mm | 45°/45° |
Water Pump Parameters | ||
Type | Parameter | Pad Length |
0.37 kw Pump | 380 V/50 HZ/3 phase | ＜6 m |
0.55 kw Pump | 380 V/50 HZ/3 phase | 6-10 m |
0.75 kw Pump | 380 V/50 HZ/3 phase | 10-15 m |
0.9 kw Pump | 380 V/50 HZ/3 phase | 15-24 m |

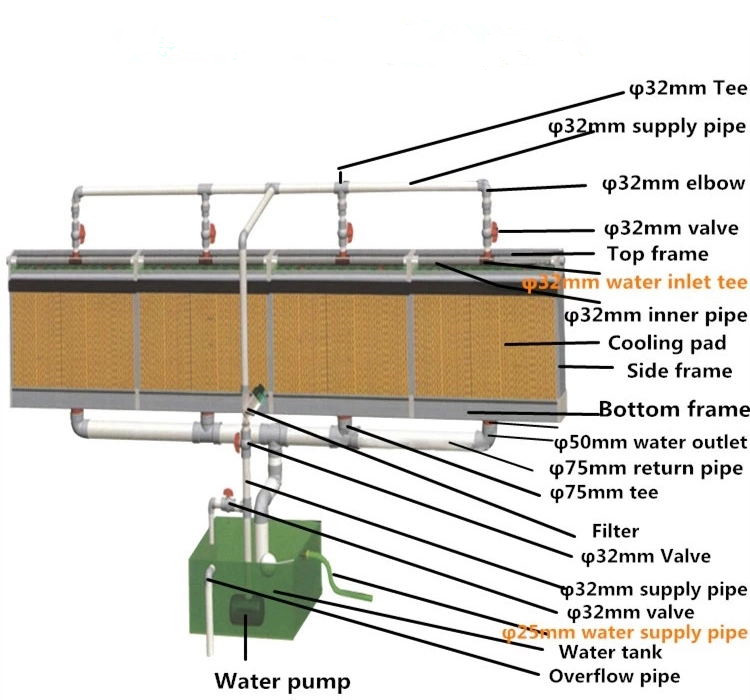

Schematic diagram of wet curtain ventilation and cooling
Horizontal Installation Longitudinal Installation Negative pressure ventilation system
Product Advantages
--> Made of absorbent kraft paper.--> High water absorption, corrosion-resistant, anti-mildew, use life together long.
--> Evaporative cooling efficiency up to 85%.--> Natural water absorption, diffusion speed, performance, and lasting.--> Not contain any harmful substances such as phenol, green, economical, and easy to install.

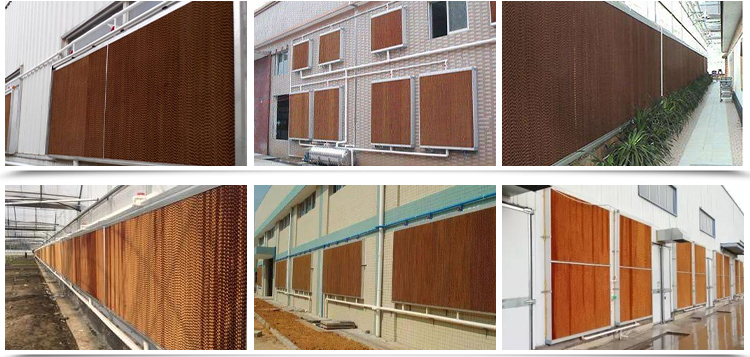

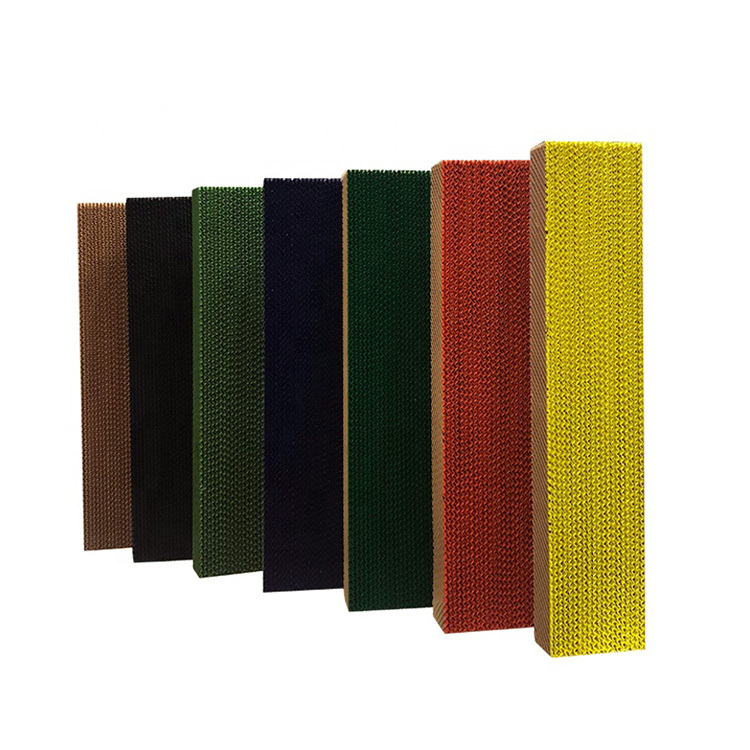

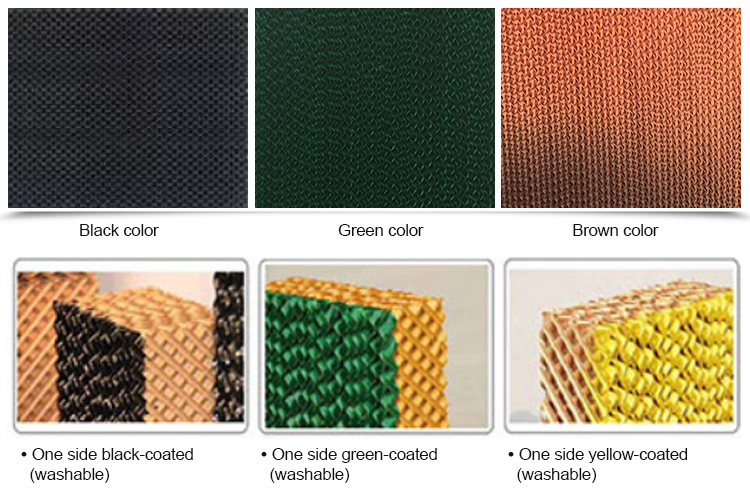

Detailed Images
